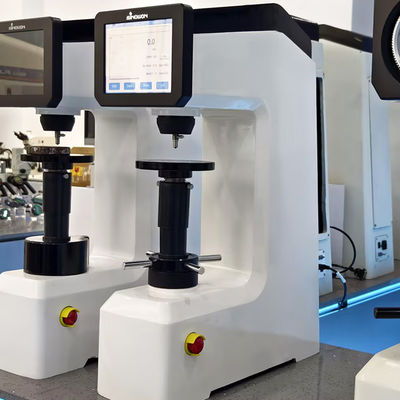

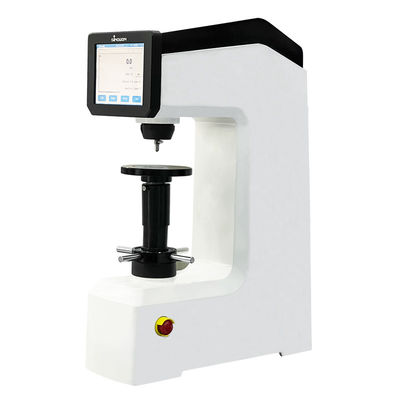

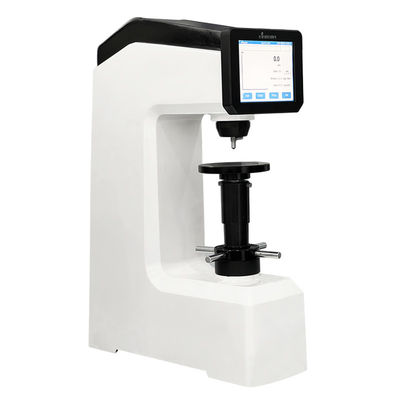

Color Touch Screen Digital Rockwell Hardness Tester DigiRock DR4
Features:
● Half automatic hardness tester except loading initial force and change force knob. Operation is very convenient and fast.

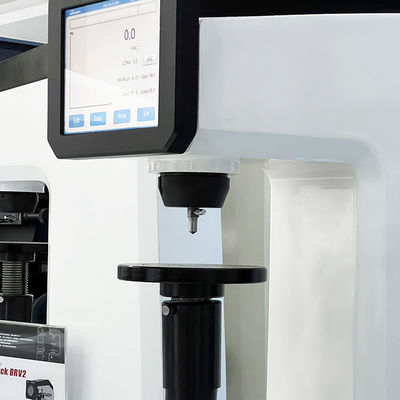

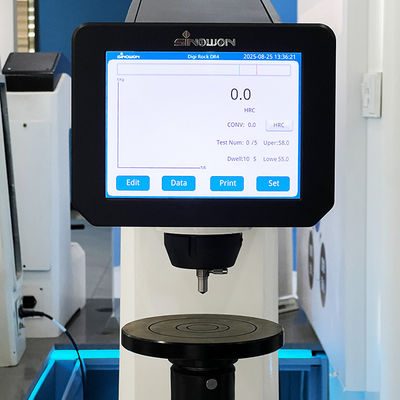

● Color touch screen, displays loading force, indenter type, dwell time, and conversion scale.
● Motorized control loading, dwell and unloading, eliminates error by manual operation.
● Built-in micro processor auto compute max, min, mean and deviation value, resolution is 0.1HR, largely improve accuracy.
● Auto hardness conversion to others scales, no need to check table and improve working efficiency.
● Support Multiple languages, English, Turkish, German, etc. Convenient for local customers operation.
● Save 2000 single testing results and 1000 group results for reviewing and analysis
● Optional blue tooth mini printer is available.
Application:
◆ Rockwell B Scale HRB: Copper alloys, soft steels, aluminum alloys, malleable iron, etc.
◆ Rockwell C Scale HRC: Steel, hard cast irons, pearlitic malleable iron, titanium, deep case hardened steel, and other materials harder than B100.
◆ Rockwell A Scale HRA: Cemented carbides, thin steel, and shallow case-hardened steel.
Specifications:
| Commodity |
Color Touch Screen Digital Rockwell Hardness Tester |
| Model |
DigiRock DR4 |
| Code# |
811-180 |
| Rockwell Scales |
HRA,HRB,HRC,HRD,HRE,HRF,HRG,HRH,HRK,
HRL,HRM,HRP,HRR,HRS,HRV
|
| Preliminary Test Force |
10Kgf(98.07N) Permitted Error:±2.0% |
| Test Force |
60Kgf(588.4N),100Kgf(980.7N),150Kgf(1471N)
Permitted Error:±1.0%
|
| Dwell Time |
Adjustable 1-60s |
| Hardness Indication |
5.2” Touch Screen, Resolution:640x480 |
| Resolution |
0.1HR |
| Loading Control |
Auto Loading/Dwell/Unloading |
| Hardness Conversion |
HRC,HV,HBS,HBW,HK,HRA,HRD,HR15N,HR30N,
HR45N,HS,HRF,HR15T,HR30T,HR45T,HRB
|
| Conversion Standards |
ASTM,DIN |
| Language Option |
Chinese, English, German, Portuguese, Turkish, Czech, Korean |
| Correction Range |
-3.0HR to +3.0HR, Step 0.1HR |
| Data Memory |
2000 Single Measuring Result, Curve Analysis, Results
Reviewing And Analysis
|
| Data Output |
Optional Blue Tooth Mini Printer |
| Max. Height Of Specimen |
175mm |
| Instrument Throat |
165mm |
| Power supply |
AC220V/50Hz;AC110V/60Hz |
| Dimension(LxWxH) |
546x182x755mm |
| Packing Dimension |
610x450x870mm |
| Gross/Net Weight |
110Kg/90Kg |
| Execution Standard |
GB/T230.2, JJS Z2245, EN-ISO6508, ASTME-18 |
